Technical Specifications
NXP MC9RS08KB8CWJ technical specifications.
General
Package/Case
SOIC
Data Bus Width
8b
Frequency
20MHz
Interface
I2C, SCI, SPI
Max Frequency
40MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
18
Number of Programmable I/O
18
Number of Timers/Counters
2
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
254B
RoHS Compliant
Yes
Series
RS08
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP MC9RS08KB8CWJ Datasheet
Download the complete datasheet for NXP MC9RS08KB8CWJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

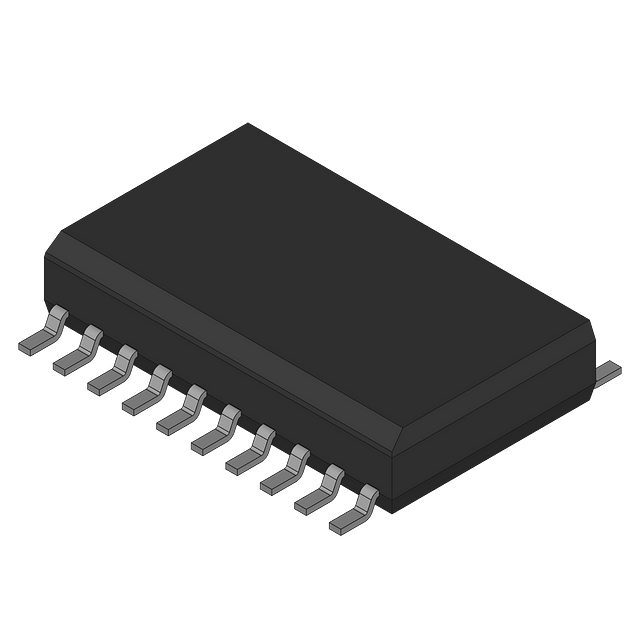

Product Images
