8-bit S08 microcontroller featuring an 8KB FLASH memory and 1KB RAM. Operates at up to 48MHz with 37 programmable I/Os. Supports I2C, SPI, USB, LIN, and SCI interfaces, along with POR, PWM, WDT, and LVD peripherals. This surface mount QFN EP package operates from 2.7V to 5.5V, with a temperature range of -40°C to 85°C.
Frequency48MHz
PackageQFN EP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC9S08JM8CGT technical specifications.
General
| Package/Case | QFN EP |
| Core Architecture | S08 |
| Data Bus Width | 8b |
| Frequency | 48MHz |
| Halogen Free | Halogen Free |
| Interface | I2C, SPI, USB, LIN, SCI |
| Lead Free | Lead Free |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 8KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of I/Os | 37 |
| Number of Programmable I/O | 37 |
| Number of Timers/Counters | 2 |
| Oscillator Type | External |
| Package Quantity | 260 |
| Packaging | Tray |
| Peripherals | POR, PWM, WDT, LVD |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | Yes |
| Series | S08 |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP MC9S08JM8CGT Datasheet
Download the complete datasheet for NXP MC9S08JM8CGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

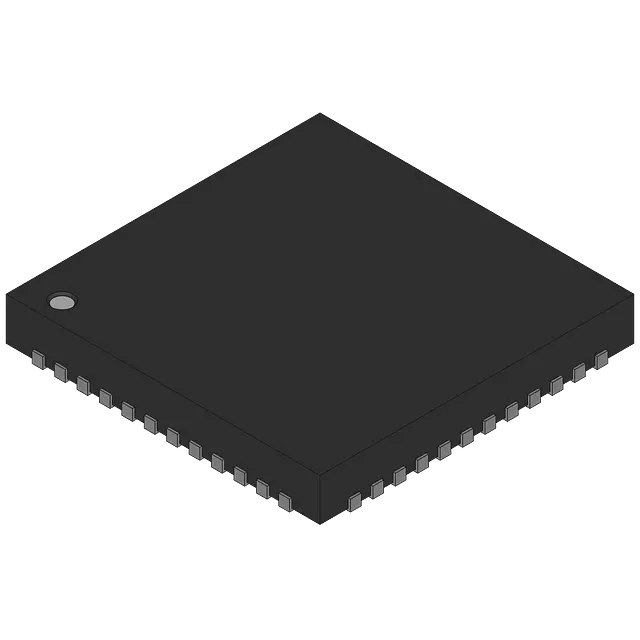

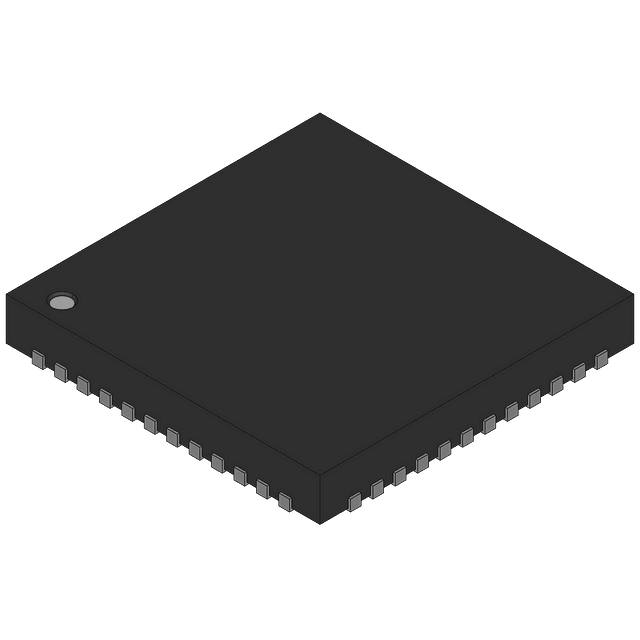

Product Images
