8-bit S08 microcontroller featuring an 8b data bus and a maximum operating frequency of 48MHz. This integrated circuit offers 32KB of FLASH memory and 2KB of RAM, with support for I2C, SPI, SCI, and UART interfaces. Designed for surface mount applications in a 64-LQFP package, it operates within a supply voltage range of 1.8V to 3.6V and boasts a wide operating temperature range of -40°C to 85°C. Included peripherals consist of POR, PWM, WDT, LVD, and I2C, with a watchdog timer present.
Frequency48MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MC9S08MM32ACLH technical specifications.
General
Package/Case
LQFP
Core Architecture
S08
Data Bus Width
8b
Frequency
48MHz
Halogen Free
Halogen Free
Interface
I2C, SPI, SCI, UART
Lead Free
Lead Free
Max Frequency
48MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of I/Os
33
Number of Programmable I/O
33
Number of Timers/Counters
1
Oscillator Type
Internal
Packaging
Tray
Peripherals
POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
S08
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP MC9S08MM32ACLH Datasheet
Download the complete datasheet for NXP MC9S08MM32ACLH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

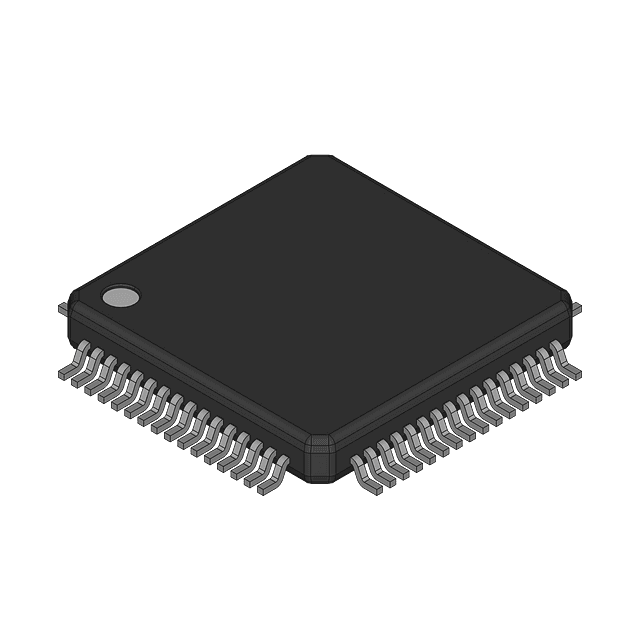

Product Images
