32-bit RISC microcontroller featuring a Coldfire core, operating at up to 50.33MHz. This FLASH memory microcontroller offers 32KB of FLASH and 16KB of RAM, with 66 programmable I/Os. Integrated peripherals include SPI, SCI, I2C, USB, CAN, PWM, WDT, and LVD. Designed for surface mounting in an LQFP package, it operates from 2.7V to 5.5V and is RoHS and Halogen Free compliant.
Frequency50.33MHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MCF51JM32VLK technical specifications.
General
Package/Case
LQFP
Core Architecture
Coldfire
Data Bus Width
32b
Frequency
50.33MHz
Halogen Free
Halogen Free
Interface
SPI, SCI, I2C, USB, CAN
Lead Free
Lead Free
Max Frequency
50.33MHz
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
66
Number of Programmable I/O
66
Number of Timers/Counters
9
Operating Supply Voltage
3.6V
Oscillator Type
External
Package Quantity
90
Packaging
Tray
Peripherals
PWM, WDT, LVD
Radiation Hardening
No
RAM Size
16KB
RoHS Compliant
Yes
Series
MCF51JM
Weight
0.022489oz
Compliance
RoHS
Compliant
Datasheet
NXP MCF51JM32VLK Datasheet
Download the complete datasheet for NXP MCF51JM32VLK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

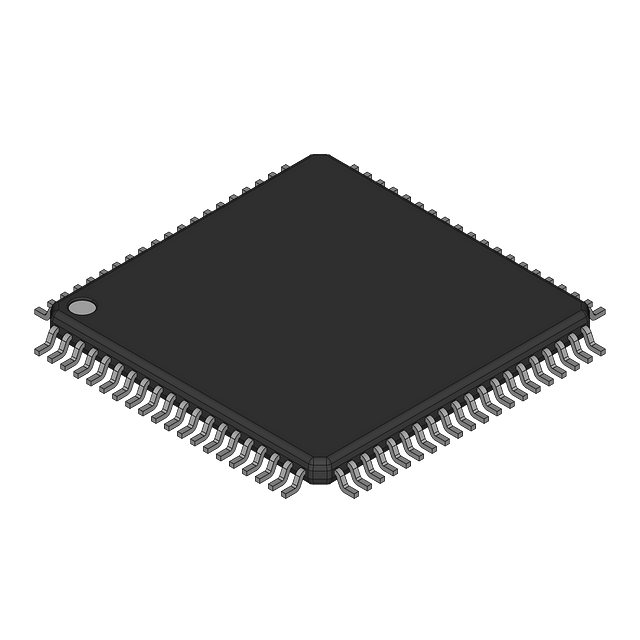

Product Images
