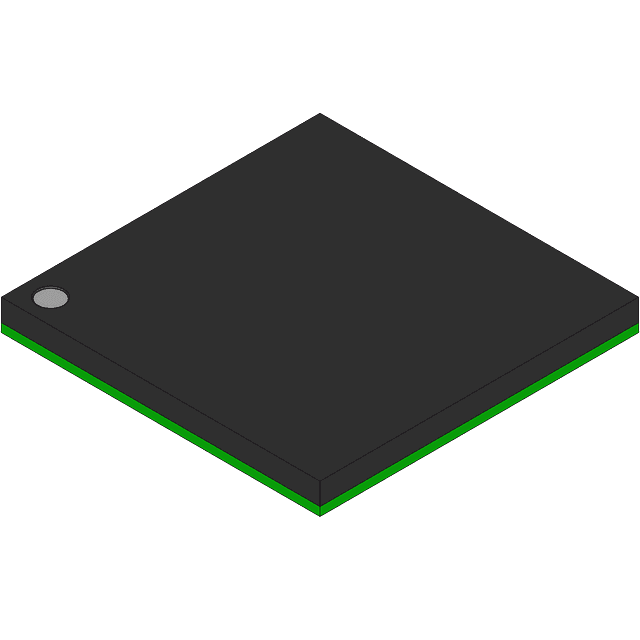

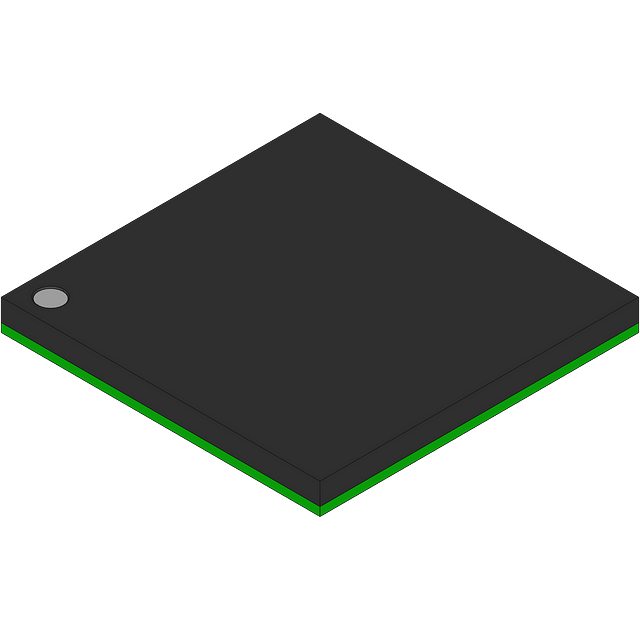

32-bit RISC microprocessor featuring a 166.67MHz Coldfire core. This surface mount device offers 16KB RAM, I2C, SPI, UART, USART, and EBI/EMI interfaces, with 30 I/Os. Operating voltage is 3.3V, with a range of 1.4V to 3.6V. Packaged in a 144-ball MAPBGA, it supports external oscillators and includes WDT and DMA peripherals. This component is halogen-free, lead-free, and RoHS compliant, operating from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MCF5207CVM166 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | MAPBGA |
| Core Architecture | Coldfire |
| Data Bus Width | 32b |
| Frequency | 166.67MHz |
| Halogen Free | Halogen Free |
| Height | 1.16mm |
| Interface | I2C, SPI, UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 13mm |
| Max Frequency | 166.67MHz |
| Max Operating Temperature | 85°C |
| Memory Type | ROMless, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Bits | 32 |
| Number of I/Os | 30 |
| Operating Supply Voltage | 3.3V |
| Oscillator Type | External |
| Packaging | Tray |
| Peripherals | WDT, DMA |
| RAM Size | 16KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MCF520x |
| Termination | SMD/SMT |
| Width | 13mm |
| RoHS | Compliant |
