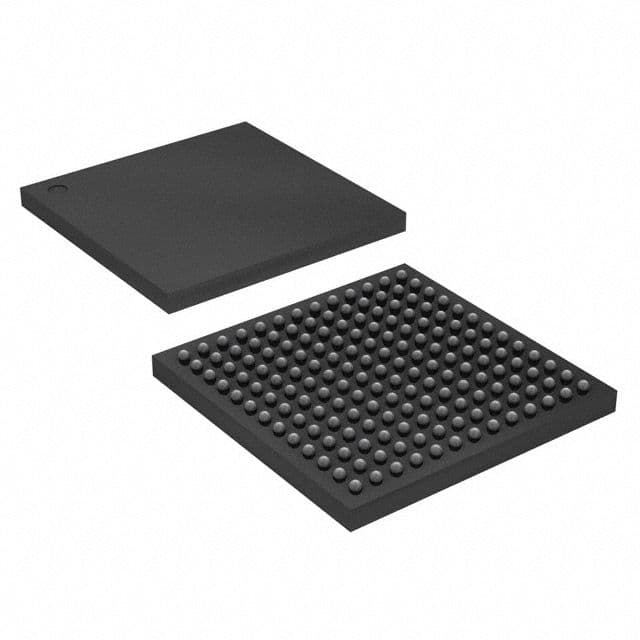

NXP MCIMX233DJM4CR2 technical specifications.
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Halogen Free | Halogen Free |
| Interface | I2C, SPI, USB, MMC, UART, USART, EBI/EMI |
| Max Frequency | 454MHz |
| Max Operating Temperature | 70°C |
| Memory Size | 64KB |
| Memory Type | ROM, L1 Cache, |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Number of I/Os | 95 |
| Oscillator Type | External |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Peripherals | POR, PWM, WDT, DMA, LCD |
| Radiation Hardening | No |
| RAM Size | 32KB |
| Series | i.MX23 |
| Weight | 0.009891oz |
| RoHS | Compliant |
Download the complete datasheet for NXP MCIMX233DJM4CR2 to view detailed technical specifications.
