Technical Specifications
NXP MCIMX508CVK8B technical specifications.
General
| Package/Case | LFBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Halogen Free | Halogen Free |
| Interface | I2C, USB, Ethernet |
| Lead Free | Lead Free |
| Max Frequency | 800MHz |
| Max I/O Voltage | 3.3V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.15V |
| Memory Type | ROM, L2 Cache |
| Min Supply Voltage | 950mV |
| Mount | Surface Mount |
| Number of Cores | 1 |
| Package Quantity | 800 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 256KB |
| RoHS Compliant | Yes |
| Series | i.MX50 |
| Weight | 0.020448oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP MCIMX508CVK8B Datasheet
Download the complete datasheet for NXP MCIMX508CVK8B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

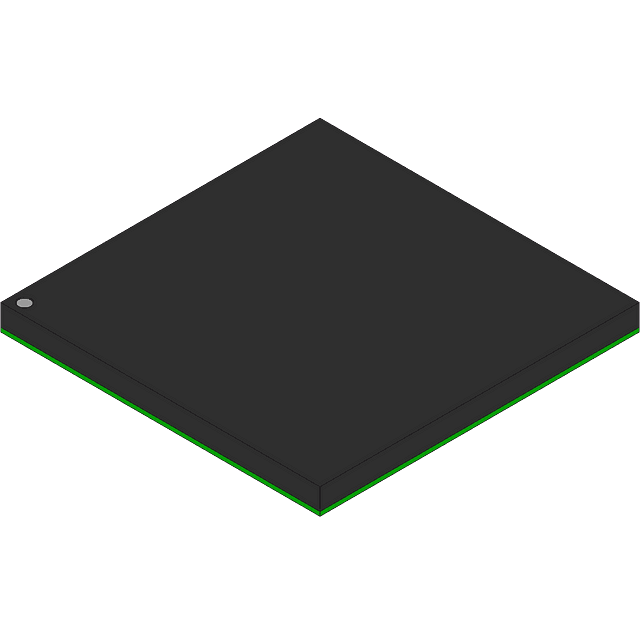

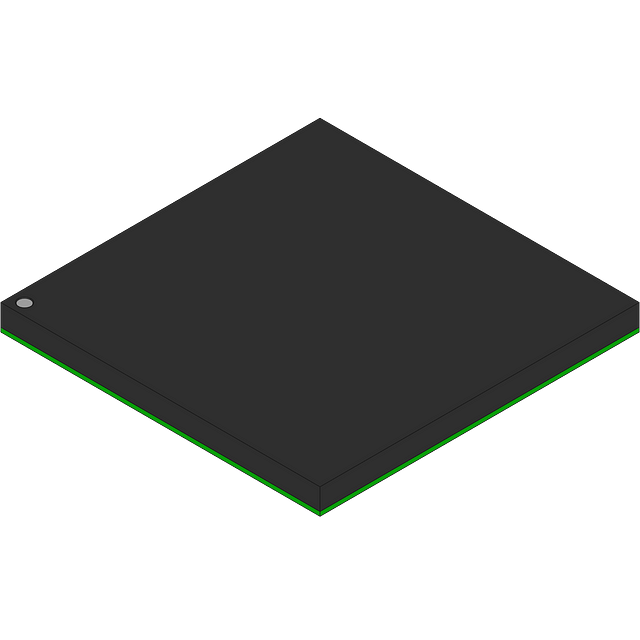

Product Images
