The MCIMX534AVV8CR2 is a microprocessor with a 32-bit data bus width and a maximum operating frequency of 800MHz. It features a USB and UART interface and is packaged in a halogen-free, RoHS-compliant FBGA. The device operates within a temperature range of -40°C to 125°C and requires a supply voltage between 1.05V and 1.15V. The microprocessor is designed for surface mount and is available in a tape and reel packaging format.
Frequency800MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MCIMX534AVV8CR2 technical specifications.
General
| Package/Case | FBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Halogen Free | Halogen Free |
| Interface | USB, UART |
| Max Frequency | 800MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.15V |
| Memory Type | ROM, L2 Cache |
| Min Supply Voltage | 1.05V |
| Mount | Surface Mount |
| Number of Cores | 1 |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RAM Size | 512MB |
| RoHS Compliant | Yes |
| Series | i.MX53 |
| Weight | 0.075349oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP MCIMX534AVV8CR2 Datasheet
Download the complete datasheet for NXP MCIMX534AVV8CR2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

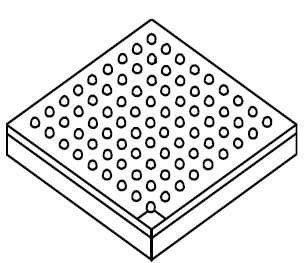

Product Images
