NXP
MMA7361LR1
Accelerometer Triple ±1.5g/±6g 2.5V/3.3V 740mV/g to 860mV/g/190.6mV/g to 221.5mV/g 14-Pin LGA T/R
PackageLGA
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MMA7361LR1 technical specifications.
General
Axis
X, Y, Z
Bandwidth
300Hz
Package/Case
LGA
Halogen Free
Halogen Free
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.4V
Mount
Surface Mount
Output Type
Analog Voltage
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
No
Sensitivity
800mV/g
Supply Current
400uA
Weight
0.001164oz
Compliance
RoHS
Not Compliant
Datasheet
NXP MMA7361LR1 Datasheet
Download the complete datasheet for NXP MMA7361LR1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

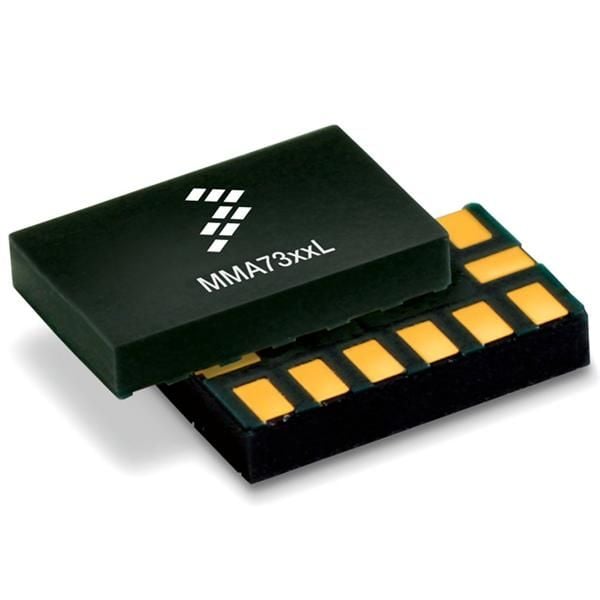

Product Images
