The MMA7455LR2 is a 3-axis accelerometer from NXP with a bandwidth of 125Hz. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage between 2.4V and 3.6V. The device is mounted using surface mount technology and has a package quantity of 5000 units per reel. It is compliant with RoHS regulations and has a sensitivity of 64LSB/g.
PackageLGA
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MMA7455LR2 technical specifications.
General
| Axis | X, Y, Z |
| Bandwidth | 125Hz |
| Package/Case | LGA |
| Depth | 3mm |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Output Type | Digital, SPI, I2C |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sensitivity | 64LSB/g |
| Supply Current | 400uA |
| Weight | 0.001164oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP MMA7455LR2 Datasheet
Download the complete datasheet for NXP MMA7455LR2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

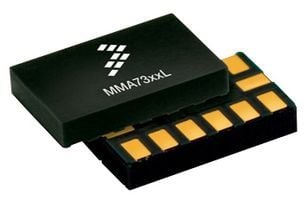

Product Images
