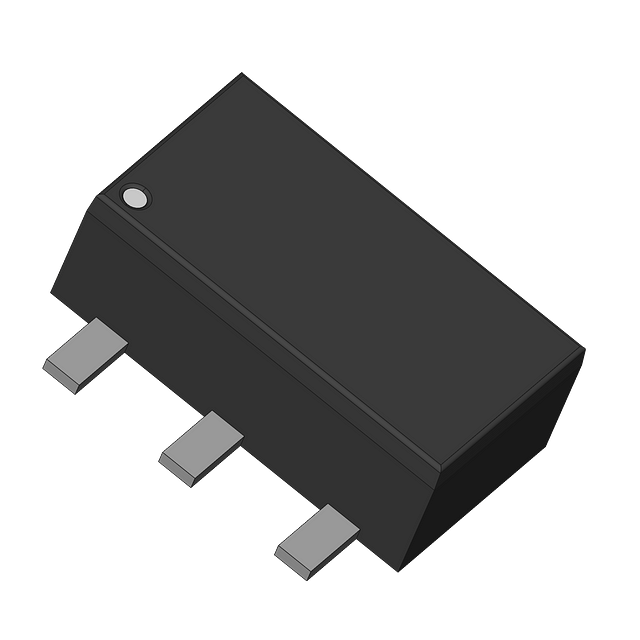

The MMG3011NT1 is a surface mount RF amplifier from NXP with a maximum operating temperature of 150°C. It has a frequency range of 0 to 6 GHz and a gain of 15 dB. The amplifier operates at a supply voltage of 5V and a supply current of 41mA. It is packaged in a SOT-89 case and is available in quantities of 1000 on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MMG3011NT1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP MMG3011NT1 technical specifications.
| Package/Case | SOT-89 |
| Frequency | 6GHz |
| Gain | 15dB |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Mount | Surface Mount |
| Noise Figure | 4.6dB |
| Number of Channels | 1 |
| Operating Frequency | 0 GHz to 6 GHz |
| Operating Supply Current | 41mA |
| Operating Supply Voltage | 5V |
| P1dB | 15dBm |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Supply Current | 41mA |
| Test Frequency | 900MHz |
| Weight | 0.001792oz |
| RoHS | Not CompliantNo |
