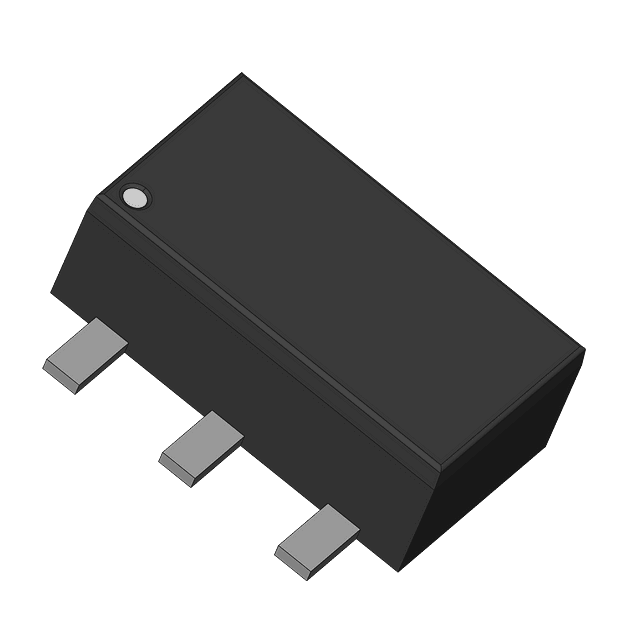

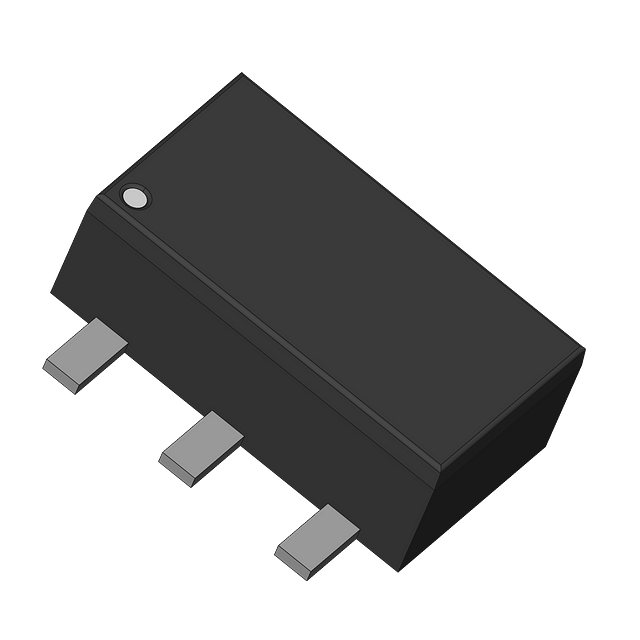

The MMG3015NT1 is a TO-243AA surface mount RF amplifier with a maximum operating temperature of 150°C and a noise figure of 5.6dB. It operates at a frequency of 6 GHz and has an output power of 20.5dBm. The amplifier is lead free and halogen free, and is packaged in a tape and reel format with 1000 units per package. It is RoHS compliant and operates from a 5V supply voltage with a current consumption of 95mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MMG3015NT1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP MMG3015NT1 technical specifications.
| Package/Case | TO-243AA |
| Gain | 15.5dB |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Mount | Surface Mount |
| Noise Figure | 5.6dB |
| Number of Channels | 1 |
| Operating Frequency | 6 GHz |
| Operating Supply Current | 95mA |
| Operating Supply Voltage | 5V |
| Output Power (dBm) | 20.5dBm |
| P1dB | 20.5dBm |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 120mA |
| Test Frequency | 900MHz |
| Weight | 0.001792oz |
| RoHS | Compliant |
