Technical Specifications
NXP MML20211HT1 technical specifications.
General
| Package/Case | DFN EP |
| Frequency | 2.8GHz |
| Gain | 18.6dB |
| Max Operating Temperature | 150°C |
| Max Supply Voltage | 6V |
| Mount | Surface Mount |
| Noise Figure | 0.85dB |
| Number of Channels | 1 |
| Operating Frequency | 1.4 GHz to 2.8 GHz |
| Operating Supply Current | 60mA |
| Operating Supply Voltage | 5V |
| P1dB | 21.3dBm |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 200mA |
| Test Frequency | 2.14GHz |
| Weight | 0.000212oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP MML20211HT1 Datasheet
Download the complete datasheet for NXP MML20211HT1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

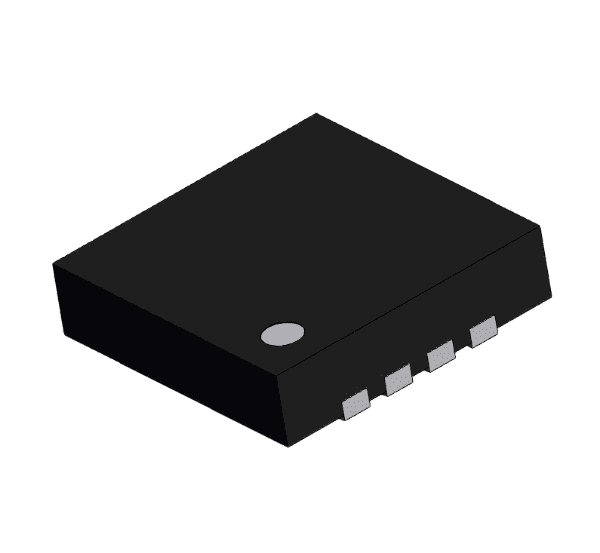

Product Images
