The MPC8271CVRPIEA is a 32-bit microprocessor with a single core and 24 I/Os. It has 16KB of RAM and operates at a supply voltage of 1.6V. The device is packaged in a tray and is compliant with RoHS regulations. It has a maximum operating temperature of 105°C and a minimum operating temperature of -40°C. The microprocessor has a maximum frequency of 300MHz.
Frequency300MHz
Quick Jump:
Technical Specifications
NXP MPC8271CVRPIEA technical specifications.
General
| Data Bus Width | 32b |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Frequency | 300MHz |
| Max Operating Temperature | 105°C |
| Memory Size | 16KB |
| Min Operating Temperature | -40°C |
| Number of Cores | 1 |
| Number of I/Os | 24 |
| Number of Programmable I/O | 14 |
| Operating Supply Voltage | 1.6V |
| Package Quantity | 40 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 20KB |
| RoHS Compliant | Yes |
| Series | MPC82xx |
| Weight | 0.154237oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP MPC8271CVRPIEA Datasheet
Download the complete datasheet for NXP MPC8271CVRPIEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

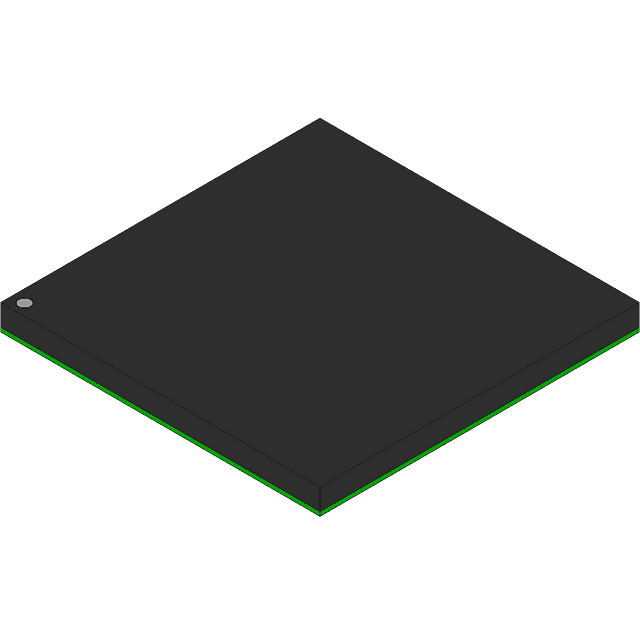

Product Images
