32-bit microprocessor featuring a single E300 core operating at up to 333MHz. This surface-mount device utilizes a 516-pin BGA package and supports a 32-bit data bus. Integrated interfaces include I2C, SPI, USB, Ethernet, PCIe, UART, and PCI. It offers 32KB of L1 cache and operates within a supply voltage range of 950mV to 1.05V, with a maximum I/O voltage of 2.5V. Designed for a wide operating temperature range from 0°C to 105°C, this RoHS and Halogen-free component is supplied in tray packaging.
Frequency333MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MPC8321EVRAFDC technical specifications.
General
Package/Case
BGA
Data Bus Width
32b
Frequency
333MHz
Halogen Free
Halogen Free
Interface
I2C, SPI, USB, Ethernet, PCIe, UART, PCI
Lead Free
Lead Free
Max Frequency
333MHz
Max I/O Voltage
2.5V
Max Operating Temperature
105°C
Max Supply Voltage
1.05V
Memory Size
32KB
Memory Type
L1 Cache,
Min Operating Temperature
0°C
Min Supply Voltage
950mV
Mount
Surface Mount
Number of Bits
32
Number of Cores
1
Package Quantity
40
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MPC83xx
Termination
SMD/SMT
Weight
0.154302oz
Compliance
RoHS
Compliant
Datasheet
NXP MPC8321EVRAFDC Datasheet
Download the complete datasheet for NXP MPC8321EVRAFDC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

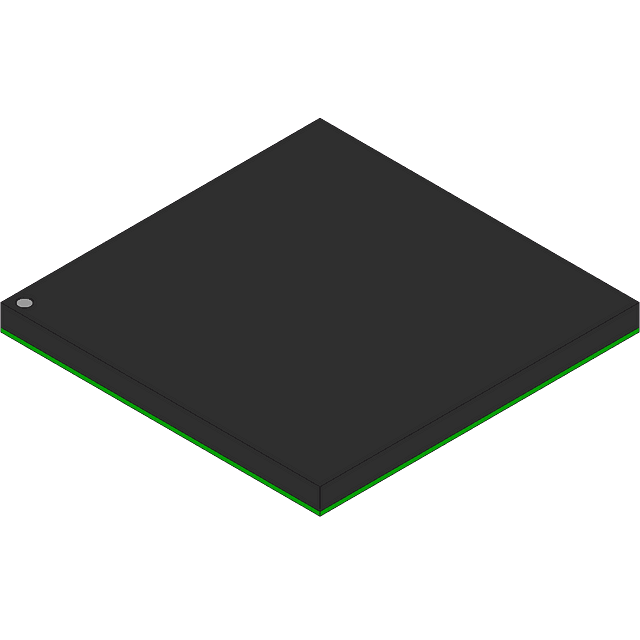

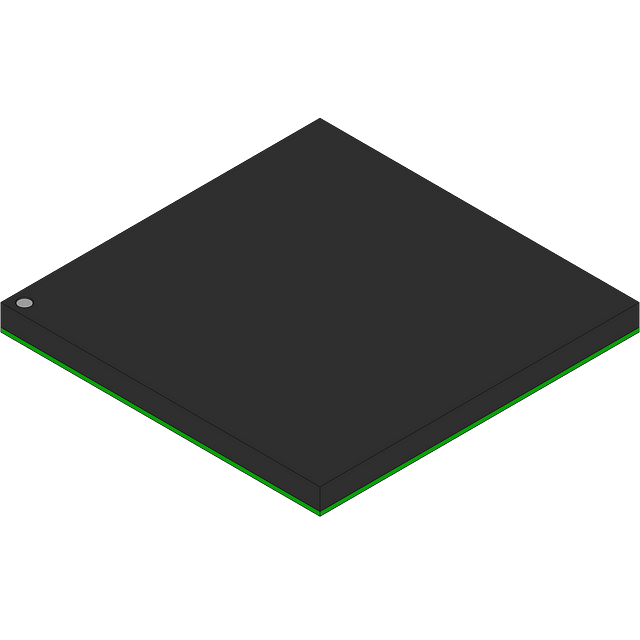

Product Images
