Frequency533MHz
PackageTBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MPC8349EVVAJDB technical specifications.
General
Package/Case
TBGA
Data Bus Width
32b
Frequency
533MHz
Halogen Free
Halogen Free
Max Frequency
533MHz
Max Operating Temperature
105°C
Min Operating Temperature
0°C
Max Supply Voltage
1.26V
Min Supply Voltage
1.14V
Mount
Surface Mount
Number of Cores
1
Operating Supply Voltage
1.2V
Package Quantity
24
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
MPC83xx
Weight
0.326496oz
Compliance
RoHS
Compliant
Datasheet
NXP MPC8349EVVAJDB Datasheet
Download the complete datasheet for NXP MPC8349EVVAJDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

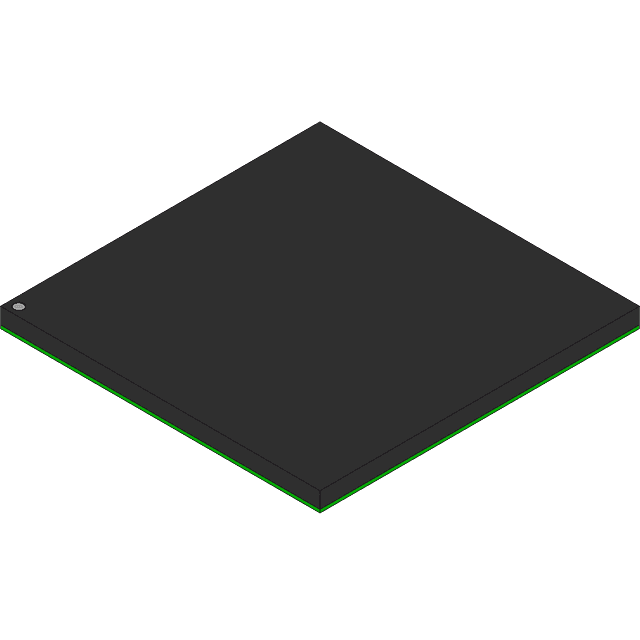

Product Images
