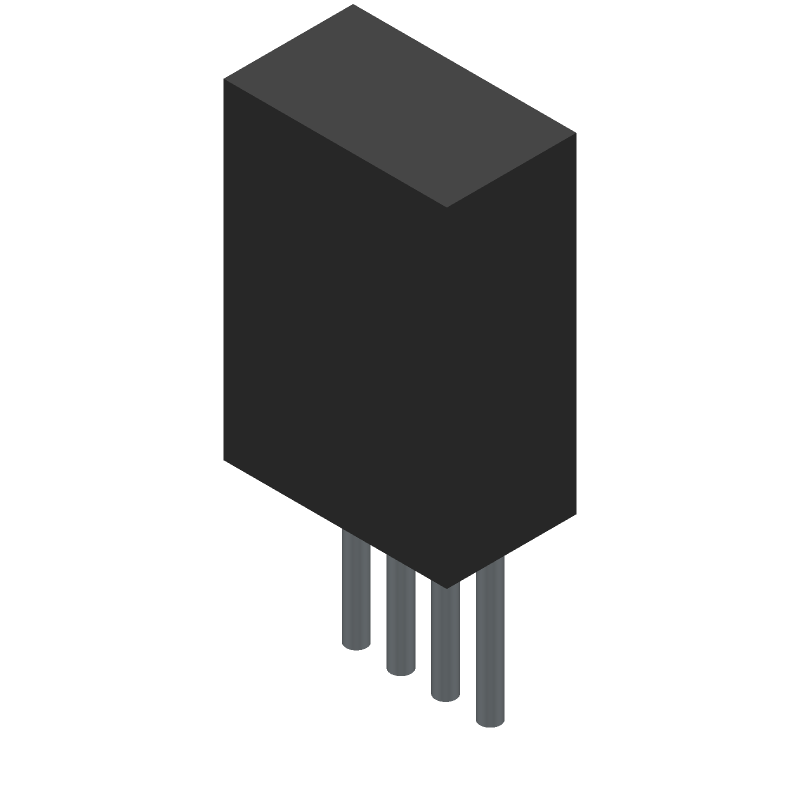

Piezoresistive differential pressure sensor with a 0 to 5.8 psi range and 3% accuracy. Features a 0.75 to 3.78 mV output signal. Operates within a temperature range of 15°C to 40°C, requiring a supply voltage from 6V to 10V. Rectangular package with through-hole mounting and solder termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP MPX2300DT1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Max Operating Temperature | 40 |
| Min Operating Temperature | 15 |
| Supply Voltage-Min | 6 |
| Supply Voltage-Max | 10 |
| Termination Type | SOLDER |
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
Download the complete datasheet for NXP MPX2300DT1 to view detailed technical specifications.
