NXP
MPXV5010G6U
GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 5%, 0.20-4.70V, SQUARE, SURFACE MOUNT
PackageSO
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP MPXV5010G6U technical specifications.
General
Accuracy
5%
Package/Case
SO
Halogen Free
Not Halogen Free
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
5.8PSI
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Surface Mount
Operating Pressure
1.45PSI
Operating Supply Voltage
5V
Output Type
Analog Voltage, Analog
Output Voltage
4.925V
Package Quantity
40
Packaging
Rail/Tube
Port Style
No Port
Pressure Type
Vented Gauge
RoHS Compliant
Yes
Series
MPXV5010
Supply Current
5mA
Termination
PCB
Weight
0.035796oz
Compliance
RoHS
Compliant
Datasheet
NXP MPXV5010G6U Datasheet
Download the complete datasheet for NXP MPXV5010G6U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

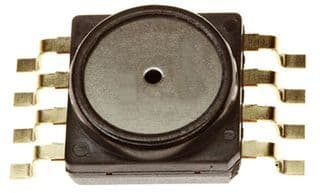

Product Images
