Technical Specifications
NXP MRF6V12500HR5 technical specifications.
General
| Current Rating | 10uA |
| Drain to Source Voltage (Vdss) | 110V |
| Frequency | 1.03GHz |
| Gain | 19.7dB |
| Gate to Source Voltage (Vgs) | 10V |
| Max Frequency | 1.215GHz |
| Min Frequency | 960MHz |
| Max Operating Temperature | 225°C |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount, Screw |
| Number of Elements | 1 |
| Operating Frequency | 0.96 GHz to 1.215 GHz |
| Output Power | 500W |
| Package Quantity | 50 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Test Voltage | 50V |
| Voltage Rating | 110V |
| Weight | 0.226635oz |
Compliance
| RoHS | Compliant |
Datasheet
NXP MRF6V12500HR5 Datasheet
Download the complete datasheet for NXP MRF6V12500HR5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

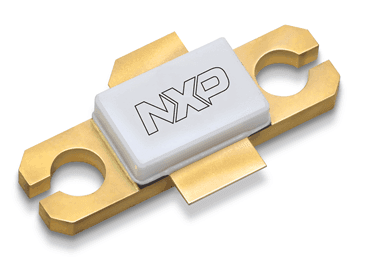

Product Images
