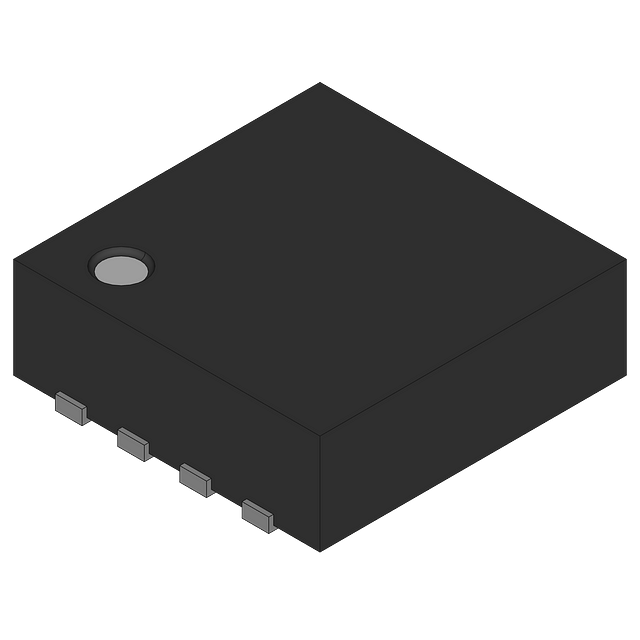

Low voltage comparator IC featuring two elements in a SOT-972-2 surface mount package. Offers a 70dB Common Mode Rejection Ratio and 80dB Power Supply Rejection Ratio. Operates with a minimum supply voltage of 1.3V and a maximum of 5.5V, drawing a quiescent current of 5uA. Provides 20mV hysteresis and a maximum input offset voltage of 30mV, with minimal 1pA input bias and maximum input current. Suitable for general purpose applications with a propagation delay of 0.8us and a maximum power dissipation of 250mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP NCX2220GU,115 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP NCX2220GU,115 technical specifications.
| Package/Case | SOT-972-2 |
| Common Mode Rejection Ratio | 70dB |
| Hysteresis | 20mV |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 30mV |
| Lead Free | Lead Free |
| Max Input Current | 1pA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Current | 5uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.3V |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Propagation Delay | 0.8us |
| Quiescent Current | 5uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 5uA |
| Type | General Purpose |
| RoHS | Compliant |
