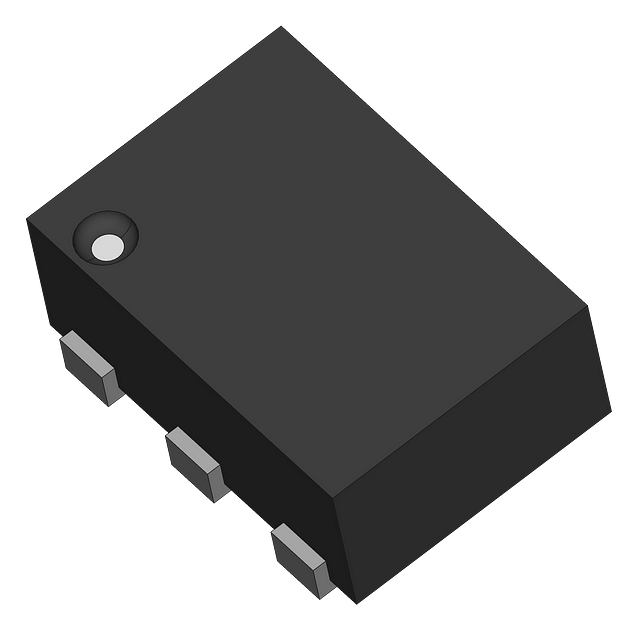

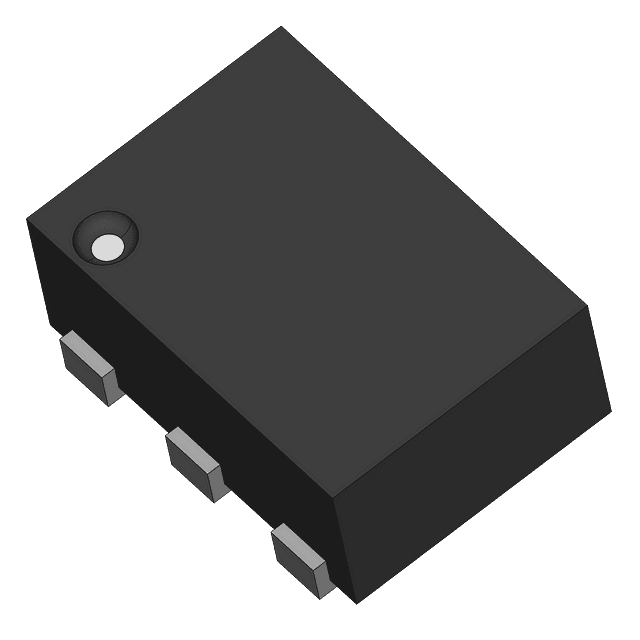

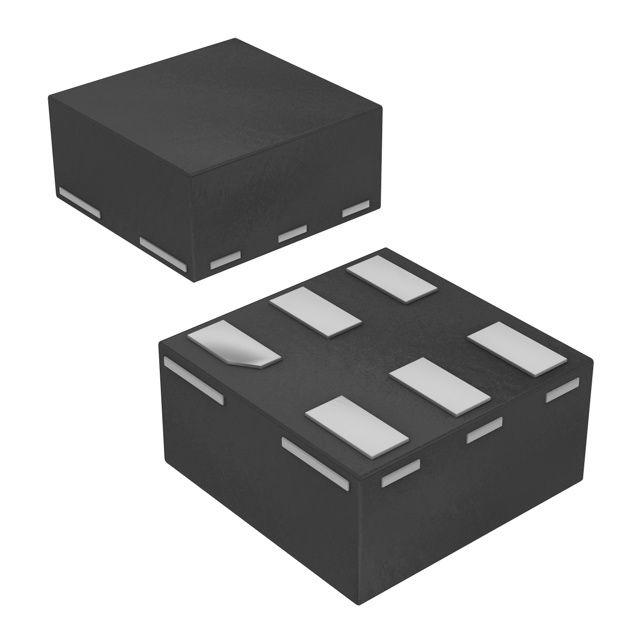

The NTB0101GS,132 is a surface mount bidirectional transceiver with a data rate of 100Mbps. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device is packaged in a SOT-1202 or XSON-6 package and is available in quantities of 5000. The transceiver features a propagation delay of 4.4ns and is suitable for use in bus transceiver applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP NTB0101GS,132 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP NTB0101GS,132 technical specifications.
| Channel Type | Bidirectional |
| Data Rate | 100Mbps |
| Direction | Bidirectional |
| Logic Function | Translator, Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Output Type | Voltage, 3-STATE |
| Package Quantity | 5000 |
| Packaging | Cut Tape |
| Propagation Delay | 4.4ns |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for NXP NTB0101GS,132 to view detailed technical specifications.
