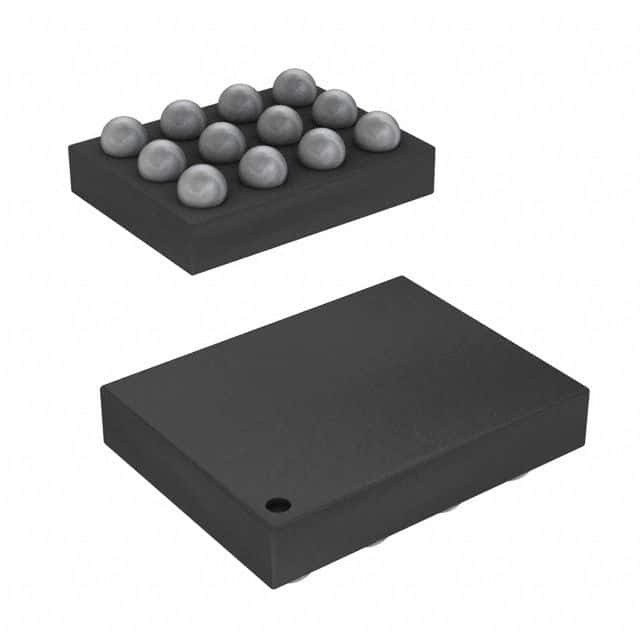

Bidirectional voltage translator with 4 bits, 100Mbps data rate, and 5.9ns propagation delay. Features 3-state voltage output, operating from 1.2V to 5.5V supply. Surface mountable in a 12WLCSP package, with a max operating temperature of 125°C. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP NTB0104UK,012 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP NTB0104UK,012 technical specifications.
| Channel Type | Bidirectional |
| Data Rate | 100Mbps |
| Direction | Bidirectional |
| Height | 615um |
| High Level Output Current | -20uA |
| Logic Function | Translator, Transceiver |
| Low Level Output Current | 20uA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Output Type | Voltage, 3-STATE |
| Package Quantity | 5000 |
| Packaging | Cut Tape |
| Propagation Delay | 5.9ns |
| Quiescent Current | 40mA |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 340ns |
| RoHS | Compliant |
