4-bit, 4-channel translating transceiver with open-drain output, supporting 50Mbps data rates. Features auto-direction sensing and a wide operating voltage range from 1.65V to 5.5V. Designed for surface mount applications with a 12-pin QFN package, offering a maximum power dissipation of 250mW and operating temperatures from -40°C to 125°C. Includes low-level output current of 1mA and high-level output current of -20uA, with propagation delay of 4.4ns and turn-on delay time of 5.8ns. Lead-free and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP NTS0104GU12,115 technical specifications.
General
| Data Rate | 50Mbps |
| High Level Output Current | -20uA |
| Lead Free | Lead Free |
| Logic Function | Translator |
| Low Level Output Current | 1mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Output Type | Voltage |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.4ns |
| Quiescent Current | 45uA |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 5.8ns |
Compliance
| RoHS | Compliant |
Datasheet
NXP NTS0104GU12,115 Datasheet
Download the complete datasheet for NXP NTS0104GU12,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

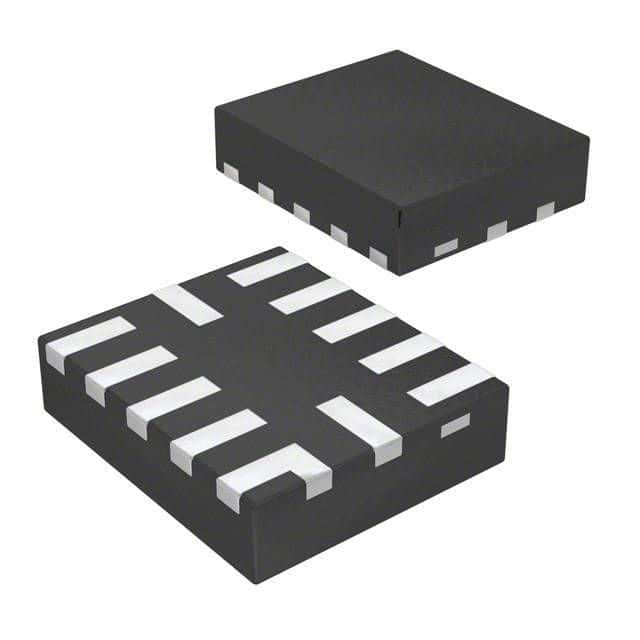

Product Images
