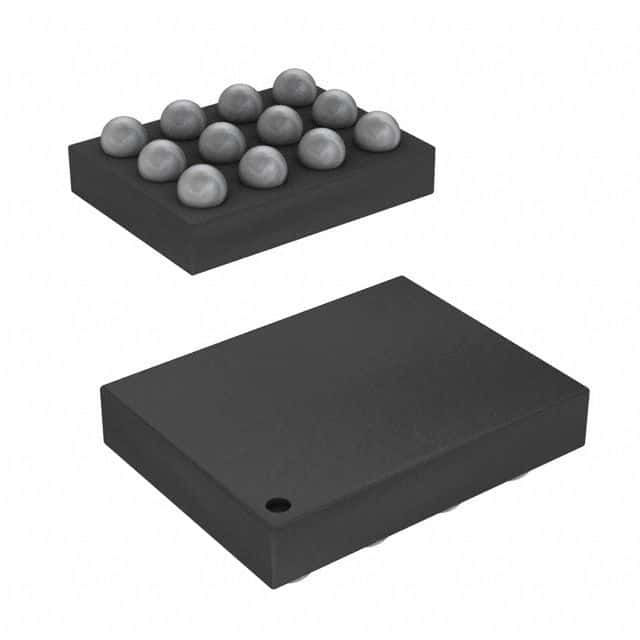

The NXP NTS0104UK,012 is a 4-channel bidirectional translator IC with a data rate of 50Mbps. It operates within a temperature range of -40°C to 125°C and can supply up to 1mA of current at low levels. The device is RoHS compliant and is packaged in a surface mount VFBGA package with 5000 units per reel. It has a propagation delay of 4.4ns and a quiescent current of 45uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP NTS0104UK,012 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP NTS0104UK,012 technical specifications.
| Channel Type | Bidirectional |
| Data Rate | 50Mbps |
| High Level Output Current | -20uA |
| Logic Function | Translator |
| Low Level Output Current | 1mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 1 |
| Output Type | Voltage |
| Package Quantity | 5000 |
| Packaging | Cut Tape |
| Propagation Delay | 4.4ns |
| Quiescent Current | 45uA |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 280ns |
| RoHS | Compliant |
