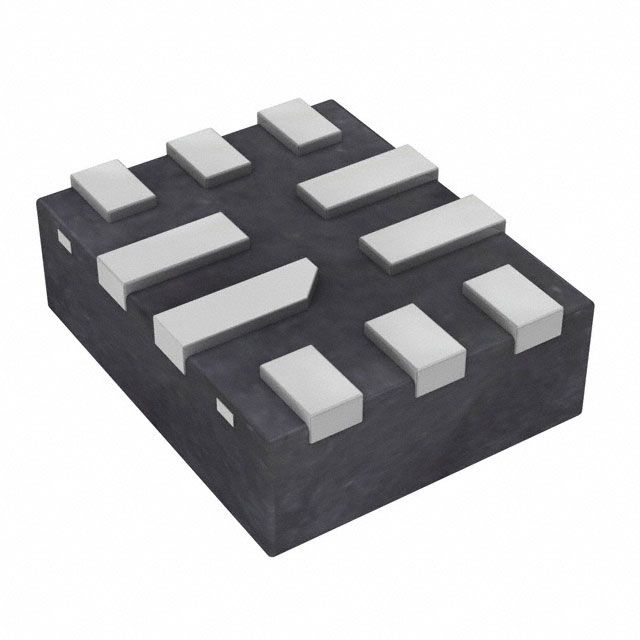

Dual high-speed USB 2.0 double-pole double-throw analog switch, designed for surface mount applications. Features a 950MHz bandwidth and operates across a -40°C to 125°C temperature range. Supports a single supply voltage from 3V to 4.3V, with a maximum power dissipation of 250mW and an operating supply current of 50mA. Packaged in tape and reel, this RoHS compliant component is ideal for high-performance switching needs.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP NX3DV42GU10X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 950MHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 4.3V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Operating Supply Current | 50mA |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | DPDT |
| RoHS | Compliant |
Download the complete datasheet for NXP NX3DV42GU10X to view detailed technical specifications.
