SPDT IC Switch, designed for single supply operation, features a 1.4V to 4.3V supply voltage range. This surface mount component offers 500mR on-state resistance and operates within a -40°C to 125°C temperature range. With a maximum power dissipation of 250mW and a low supply current of 100nA, it is suitable for various electronic applications. The device is RoHS compliant and packaged in a tape and reel for efficient assembly.
PackageSOT-833-1
Current800nA
Resistance500mR
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP NX3L1G53GT,115 technical specifications.
General
Package/Case
SOT-833-1
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Max Supply Current
100nA
Max Supply Voltage
4.3V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Channels
1
Number of Inputs
1
Number of Outputs
2
On-State Resistance
500mR
Operating Supply Current
150nA
Operating Supply Voltage
3V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
250mW
Radiation Hardening
No
Resistance
500mR
RoHS Compliant
Yes
Supply Current
800nA
Supply Type
Single
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
NXP NX3L1G53GT,115 Datasheet
Download the complete datasheet for NXP NX3L1G53GT,115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

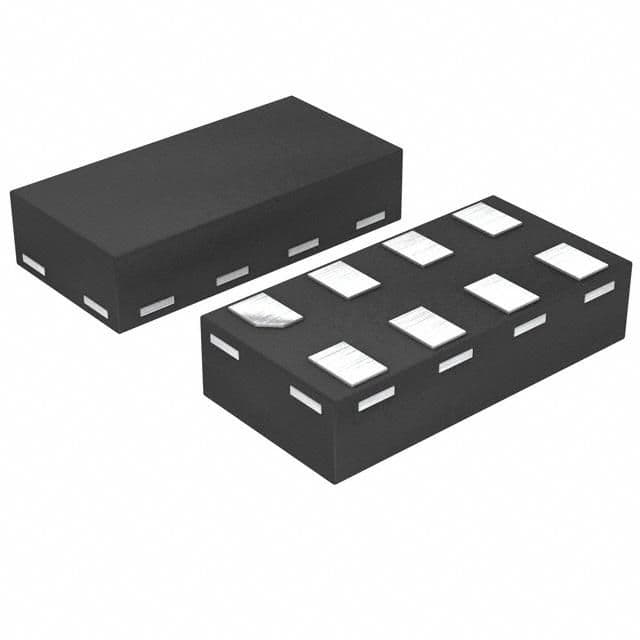

Product Images
