Current800nA
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
NXP NX3L1T53GM,125 technical specifications.
General
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Max Supply Voltage
4.3V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Channels
1
Number of Inputs
1
Number of Outputs
2
Number of Switches
1
On-State Resistance
500mR
Operating Supply Current
150nA
Operating Supply Voltage
3V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
250mW
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
800nA
Supply Type
Single
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
NXP NX3L1T53GM,125 Datasheet
Download the complete datasheet for NXP NX3L1T53GM,125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

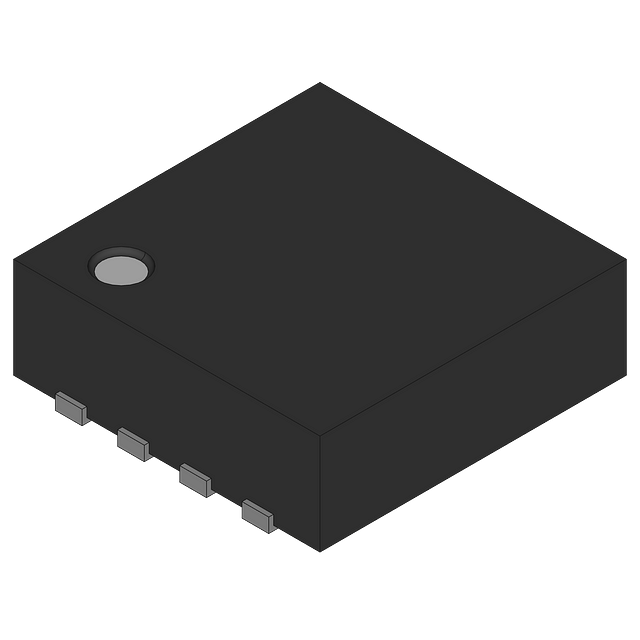

Product Images
