PackageSOT-996-2
Current800nA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP NX3L2T66GD125 technical specifications.
General
Package/Case
SOT-996-2
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Max Supply Voltage
4.3V
Min Supply Voltage
1.4V
Mount
Surface Mount
Number of Switches
1
On-State Resistance
500mR
Operating Supply Current
150nA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Supply Current
800nA
Supply Type
Single
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
NXP NX3L2T66GD125 Datasheet
Download the complete datasheet for NXP NX3L2T66GD125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

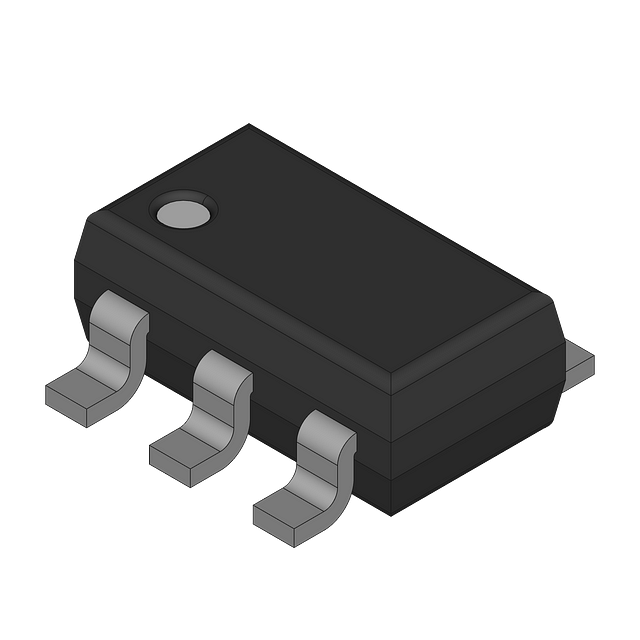

Product Images
