The NXP NX3L4684GM132 is a surface mount multiplexer/demultiplexer with 2 channels, 2 inputs, and 4 outputs. It operates over a temperature range of -40°C to 125°C and has a maximum power dissipation of 250mW. The device is powered by a single supply voltage between 1.4V and 4.3V, with an operating supply current of 150nA. It is packaged in cut tape and is suitable for use in a variety of logic IC applications.
Current500nA
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
NXP NX3L4684GM132 technical specifications.
General
| Logic Function | Multiplexer, Demultiplexer |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Voltage | 4.3V |
| Min Supply Voltage | 1.4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| Number of Switches | 2 |
| On-State Resistance | 900mR |
| Operating Supply Current | 150nA |
| Operating Supply Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Supply Current | 500nA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
NXP NX3L4684GM132 Datasheet
Download the complete datasheet for NXP NX3L4684GM132 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

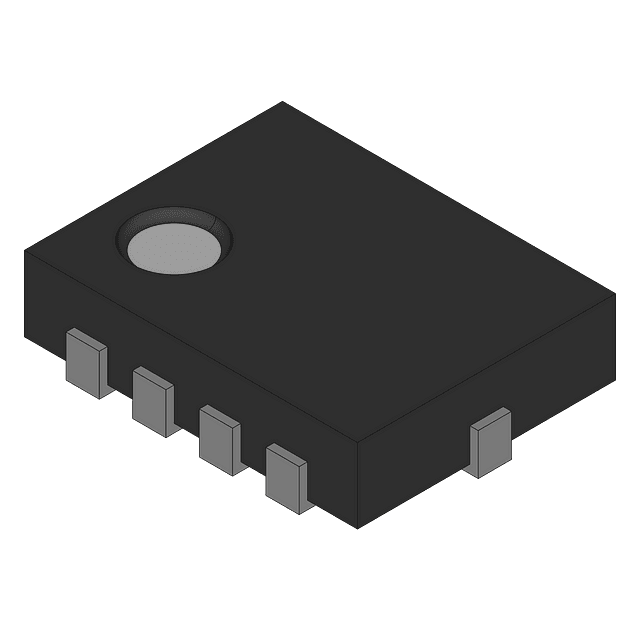

Product Images
