8-bit 80C51 microcontroller, ROMless, operating at 16MHz. Features 32 programmable I/Os, 3 PWM channels, 3 timers/counters, and 1 UART interface. Housed in a 44-pin PLCC package for surface mounting, with a supply voltage range of 2.7V to 5.5V and an operating temperature range of 0°C to 70°C. Includes a watchdog timer and is RoHS compliant.
Frequency16MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP P80C51FA-4A,512 technical specifications.
General
Package/Case
PLCC
Core Architecture
80C51
Data Bus Width
8b
Frequency
16MHz
Height
4.06mm
Interface
UART
Lead Free
Lead Free
Length
16.66mm
Max Frequency
16MHz
Max Operating Temperature
70°C
Max Power Dissipation
1.5W
Max Supply Voltage
5.5V
Memory Type
ROMless,
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
32
Number of Programmable I/O
32
Number of PWM Channels
3
Number of Timers/Counters
3
Number of UART Channels
1
Package Quantity
26
Packaging
Rail/Tube
Peripherals
PWM
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
16.66mm
Compliance
RoHS
Compliant
Datasheet
NXP P80C51FA-4A,512 Datasheet
Download the complete datasheet for NXP P80C51FA-4A,512 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

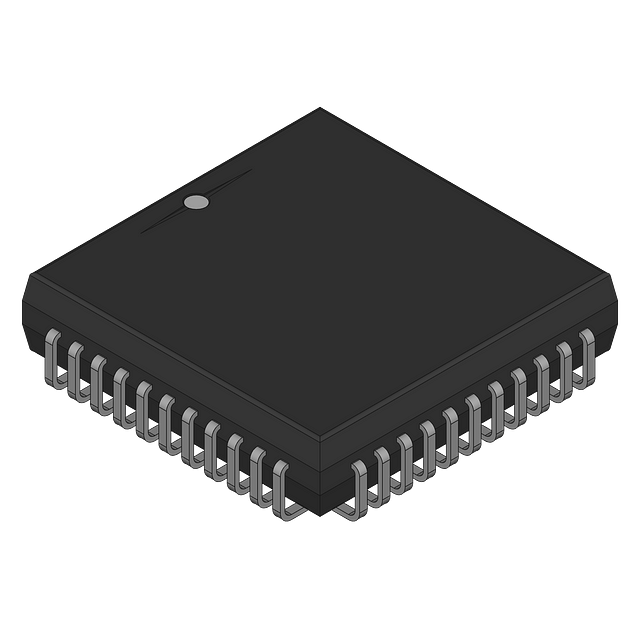

Product Images
