8-bit CISC microcontroller featuring an 80C51 core architecture and ROMless operation. This surface mount device operates at up to 24MHz, with a 256B RAM size and 48 I/Os, including 40 programmable. Integrated peripherals include I2C, UART, USART, EBI/EMI interfaces, 8 ADC channels, 2 PWM channels, and 3 timers/counters. It supports a 5V operating supply voltage, is RoHS compliant, and comes in a 68-pin PLCC package.
Frequency24MHz
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP P80C552IFA/08,512 technical specifications.
General
Package/Case
PLCC
Core Architecture
80C51
Data Bus Width
8b
Frequency
24MHz
Height
4.06mm
Interface
I2C, UART, USART, EBI/EMI
Lead Free
Lead Free
Length
24.33mm
Max Frequency
24MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Type
ROMless,
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
48
Number of I2C Channels
1
Number of Programmable I/O
40
Number of PWM Channels
2
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
5V
Package Quantity
18
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Watchdog Timer
Yes
Width
24.33mm
Compliance
RoHS
Compliant
Datasheet
NXP P80C552IFA/08,512 Datasheet
Download the complete datasheet for NXP P80C552IFA/08,512 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

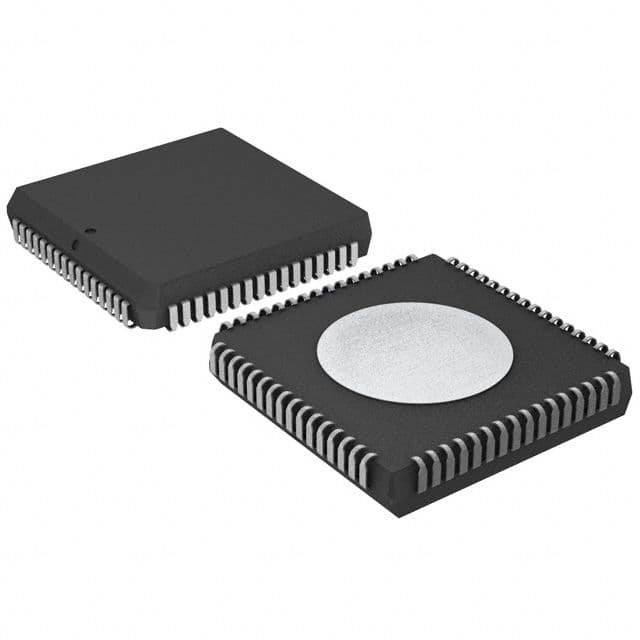

Product Images
