NXP
P89LPC913FDH,129
P89LPC912/913/914 - 8-bit microcontrollers with two-clock 80C51 core, 1 kB 3 V flash with 128-byte RAM TSSOP 14-Pin
Frequency12MHz
PackageTSSOP
Quick Jump:
Technical Specifications
NXP P89LPC913FDH,129 technical specifications.
General
Package/Case
TSSOP
Core Architecture
8051
Data Bus Width
8b
Interface
SPI, UART, USART
Max Frequency
12MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
1KB
Memory Type
FLASH,
Min Supply Voltage
2.4V
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
96
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
128B
RoHS Compliant
Yes
Series
LPC900
Compliance
RoHS
Compliant
Datasheet
NXP P89LPC913FDH,129 Datasheet
Download the complete datasheet for NXP P89LPC913FDH,129 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

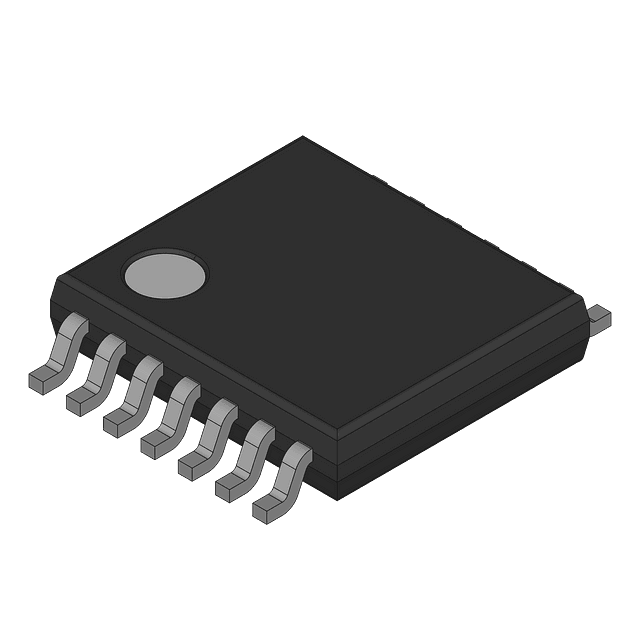

Product Images
