8-bit microcontroller featuring an 80C51 core architecture, operating at up to 18MHz. This surface-mount VQFN package offers 8KB of FLASH memory and 256B of RAM. Integrated peripherals include I2C, SPI, and UART interfaces, along with two timers/counters and a watchdog timer. It supports a wide operating voltage range of 2.4V to 3.6V and operates from -40°C to 85°C.
Frequency18MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP P89LPC938FHN,151 technical specifications.
General
Package/Case
VQFN
Core Architecture
80C51
Data Bus Width
8b
Frequency
18MHz
Interface
I2C, SPI, UART, USART
Max Frequency
18MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Min Supply Voltage
2.4V
Mount
Surface Mount
Number of I/Os
26
Number of Programmable I/O
26
Number of Timers/Counters
2
Operating Supply Voltage
3V
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
LPC900
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
NXP P89LPC938FHN,151 Datasheet
Download the complete datasheet for NXP P89LPC938FHN,151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

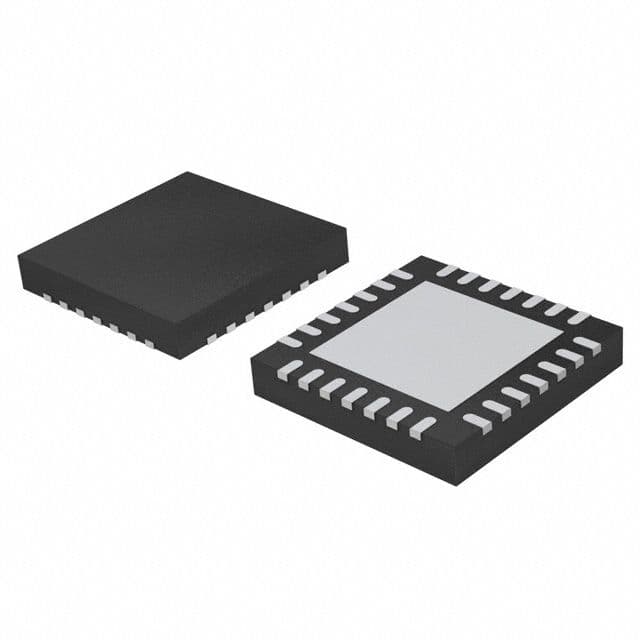

Product Images
