The PCA6408AHKX is an 8-channel I2C/SMBus I/O expander from NXP, operating at a maximum frequency of 100kHz and a supply voltage of 5.5V. It is mounted using surface mount technology and is available in a 1.80 X 2.60 MM, 0.50 MM HEIGHT, PLASTIC, SOT1161-1, XQFN-16 package. The device is compliant with RoHS regulations and has an operating temperature range of -40°C to 85°C.
Frequency400kHz
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA6408AHKX technical specifications.
General
| Frequency | 400kHz |
| Interface | I2C, SMBus |
| Lead Free | Lead Free |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Operating Supply Voltage | 5.5V |
| Output Current | 10mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCA6408AHKX Datasheet
Download the complete datasheet for NXP PCA6408AHKX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

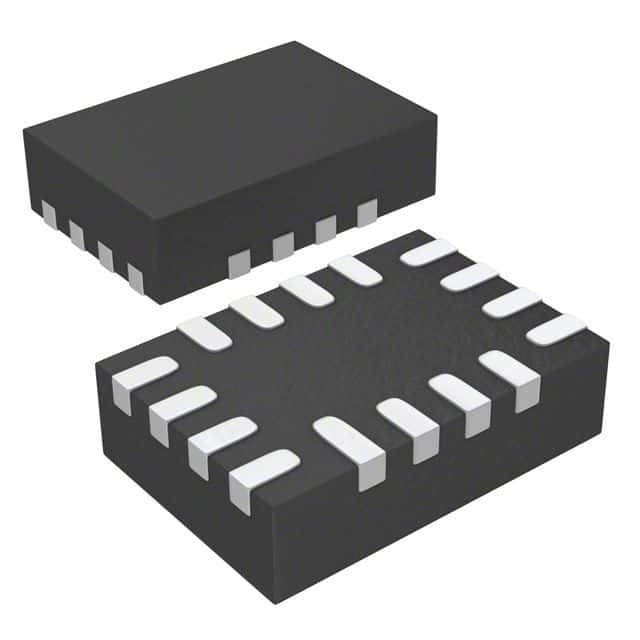

Product Images
