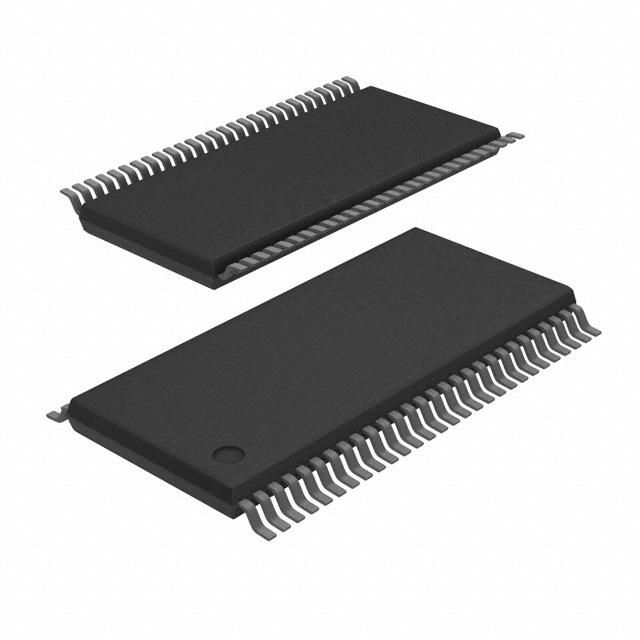

The PCA8546ATT/AJ is a 176-segment I2C LCD driver from NXP, packaged in a TSSOP case and designed for surface mount. It operates within a temperature range of -40°C to 95°C and is powered by a supply voltage of up to 5.5V. The device has a maximum power dissipation of 400mW and a supply current of 30uA when operating. It is lead-free and RoHS compliant, making it suitable for a wide range of applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PCA8546ATT/AJ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PCA8546ATT/AJ technical specifications.
| Package/Case | TSSOP |
| Display Type | LCD |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Frequency | 11kHz |
| Max Operating Temperature | 95°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Supply Current | 25uA |
| Mount | Surface Mount |
| Number of Segments | 176 |
| Operating Supply Current | 30uA |
| Operating Supply Voltage | 5.5V |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
