NXP
PCA9306DP1,125
PCA9306 - Dual bidirectional I2C-bus and SMBus voltage-level translator TSSOP 8-Pin
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9306DP1,125 technical specifications.
General
Package/Case
TSSOP
Lead Free
Lead Free
Logic Function
Translator
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
0V
Mount
Surface Mount
Number of Bits
2
Number of Channels
2
Number of Inputs
2
Output Type
Voltage
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
0.6ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
3.3ns
Compliance
RoHS
Compliant
Datasheet
NXP PCA9306DP1,125 Datasheet
Download the complete datasheet for NXP PCA9306DP1,125 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

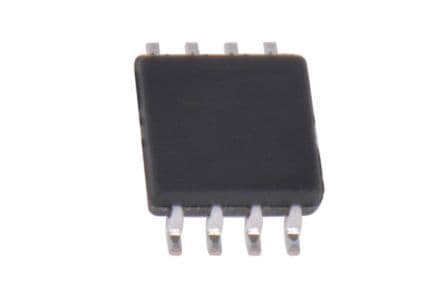

Product Images
