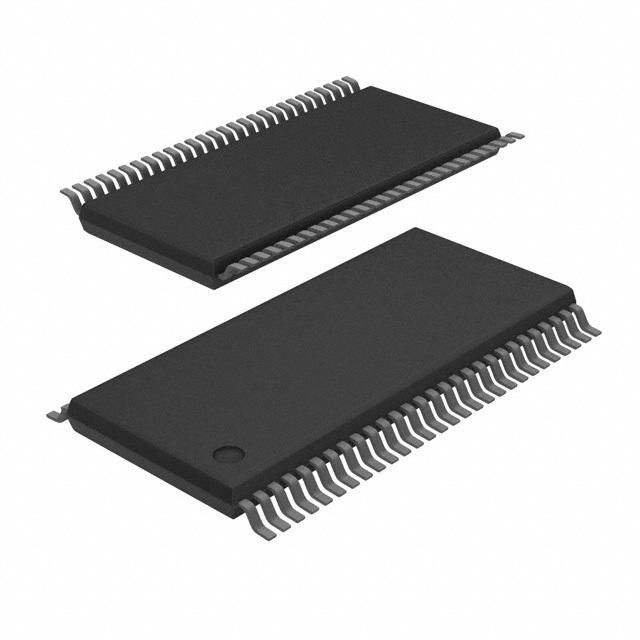

The PCA9505DGG,112 is a 40-I/O I2C I/O expander from NXP, operating over a temperature range of -40°C to 85°C. It supports a maximum supply voltage of 5V and a minimum supply voltage of 2.3V. The device is packaged in a TSSOP56 package and is lead-free and RoHS compliant. It has a maximum supply current of 150uA and a nominal supply voltage of 3.3V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PCA9505DGG,112 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PCA9505DGG,112 technical specifications.
| Package/Case | TSSOP |
| Frequency | 400kHz |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.3V |
| Number of I/Os | 40 |
| Package Quantity | 35 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 150uA |
| Supply Voltage-Nom | 3.3V |
| RoHS | Compliant |
