I2C Buffer/Repeater supporting 1.8V, 2.5V, 3.3V, and 5V logic levels. Features two channels with a maximum frequency of 400kHz and a propagation delay of 170ns. Operates with a supply voltage range of 2.7V to 5.5V and a typical supply current of 5mA. Packaged in an 8-pin TSSOP surface mount configuration, this lead-free and RoHS compliant component is supplied on tape and reel.
Frequency400kHz
PackageTSSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9517ADP,118 technical specifications.
General
Package/Case
TSSOP
Height
0.95mm
Interface
I2C, SMBus
Lead Free
Lead Free
Length
3.1mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
2
Operating Supply Current
5mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
170ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Weight
0.005573oz
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
NXP PCA9517ADP,118 Datasheet
Download the complete datasheet for NXP PCA9517ADP,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

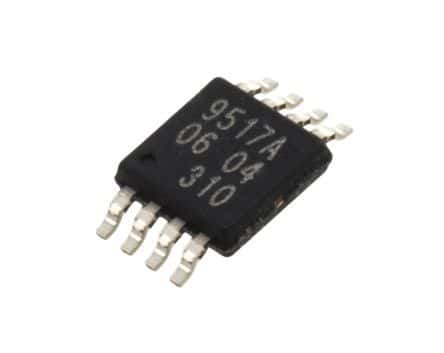

Product Images
