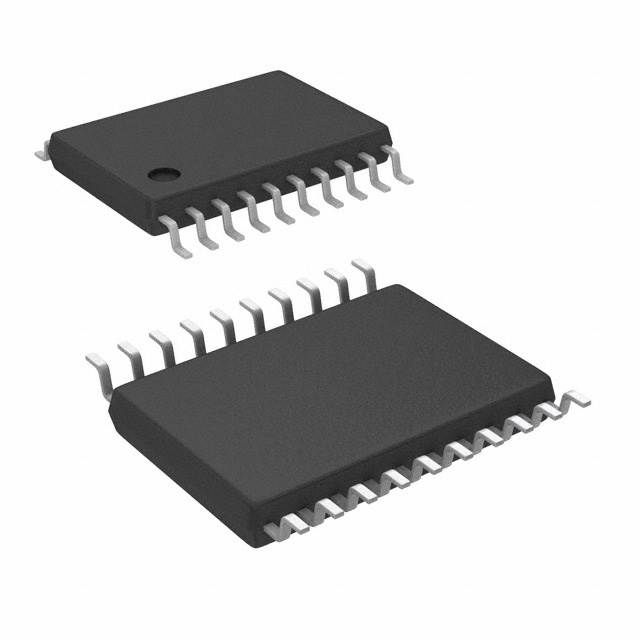

The PCA9518APW,512 is a 5-channel I2C/SMBus interface IC from NXP. It operates over a temperature range of -40°C to 85°C and is packaged in a lead-free TSSOP package. The device is RoHS compliant and has a maximum supply voltage of 3.6V. It draws a maximum supply current of 11mA and can operate at a maximum frequency of 400kHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PCA9518APW,512 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PCA9518APW,512 technical specifications.
| Package/Case | TSSOP |
| Interface | I2C, SMBus |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Channels | 5 |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 11mA |
| Supply Voltage-Nom | 3.6V |
| RoHS | Compliant |
Download the complete datasheet for NXP PCA9518APW,512 to view detailed technical specifications.
