The PCA9534BS3,118 is an 8-channel I/O expander from NXP, operating at a frequency of 400kHz with a supply voltage of 5.5V. It is designed for surface mount applications and has a maximum power dissipation of 200mW. The device is RoHS compliant and has an operating temperature range of -40°C to 85°C. It is available in a QFN package, packaged on a tape and reel.
Frequency400kHz
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9534BS3,118 technical specifications.
General
| Frequency | 400kHz |
| Interface | I2C, SMBus, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of I/Os | 8 |
| Operating Supply Voltage | 5.5V |
| Output Current | 50mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCA9534BS3,118 Datasheet
Download the complete datasheet for NXP PCA9534BS3,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

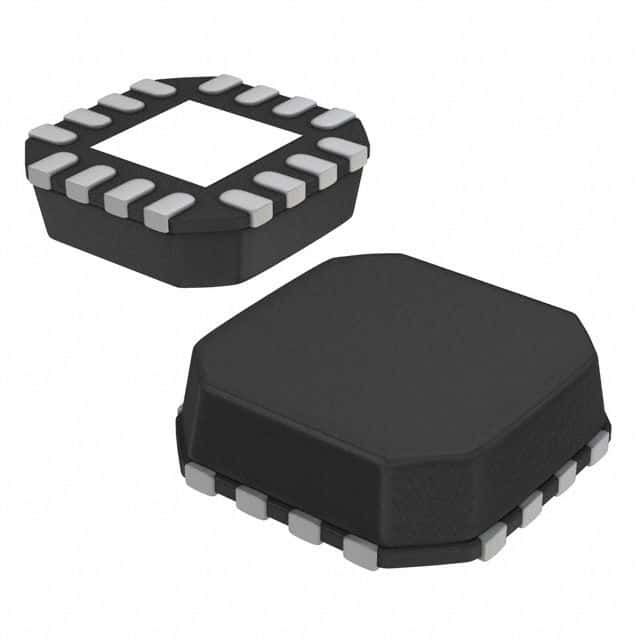

Product Images
