NXP
PCA9535D,112
PCA9535; PCA9535C - 16-bit I2C-bus and SMBus, low power I/O port with interrupt SOP 24-Pin
Frequency400kHz
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9535D,112 technical specifications.
General
Package/Case
SO
Frequency
400kHz
Interface
I2C, SMBus
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of I/Os
16
Package Quantity
30
Packaging
Rail/Tube
RoHS Compliant
Yes
Supply Voltage-Nom
5.5V
Weight
0.038731oz
Compliance
RoHS
Compliant
Datasheet
NXP PCA9535D,112 Datasheet
Download the complete datasheet for NXP PCA9535D,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

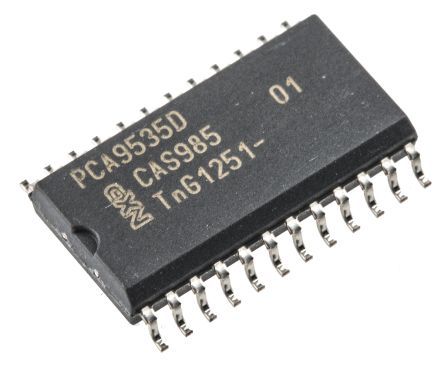

Product Images
