Frequency400kHz
PackageTSSOP
Current100A
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9543APW,112 technical specifications.
General
Package/Case
TSSOP
Interface
I2C, SMBus
Lead Free
Lead Free
Logic Function
Multiplexer
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Channels
2
Number of Inputs
2
Number of Outputs
1
Package Quantity
96
Packaging
Rail/Tube
Power Dissipation
400mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
100A
Supply Voltage-Nom
5.5V
Compliance
RoHS
Compliant
Datasheet
NXP PCA9543APW,112 Datasheet
Download the complete datasheet for NXP PCA9543APW,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

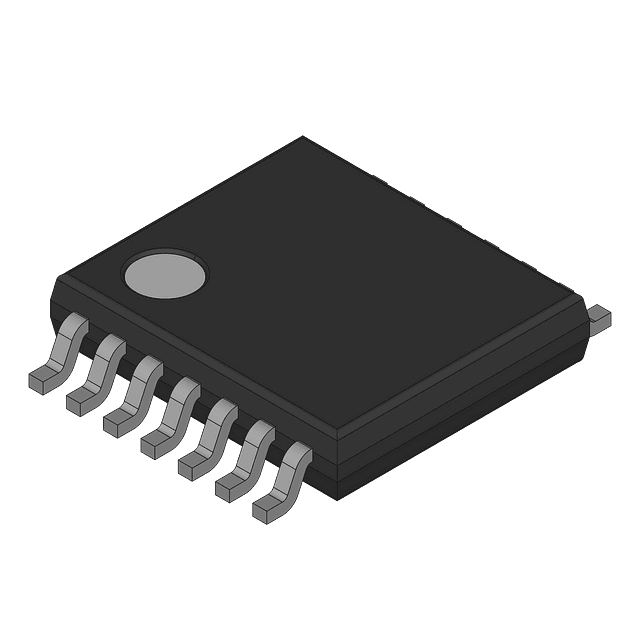

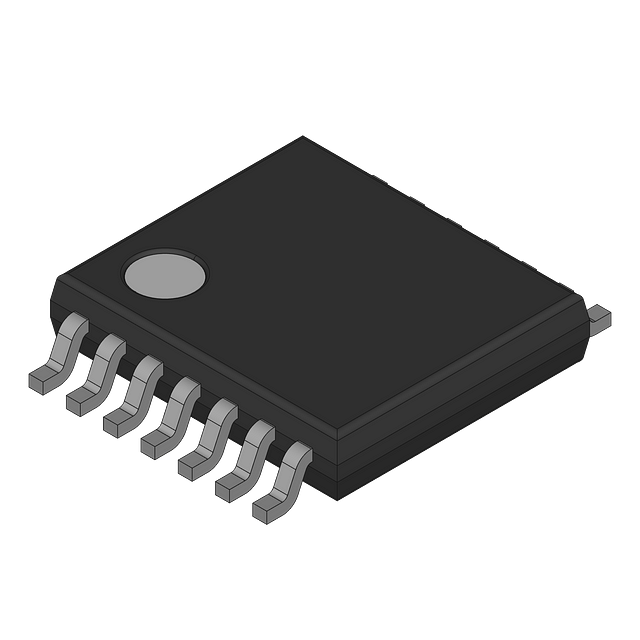

Product Images
