Technical Specifications
NXP PCA9546AD112 technical specifications.
General
| Package/Case | SO |
| Height | 1.45mm |
| Interface | I2C, SMBus |
| Lead Free | Lead Free |
| Length | 10mm |
| Logic Function | Multiplexer |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Inputs | 4 |
| Number of Outputs | 1 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCA9546AD112 Datasheet
Download the complete datasheet for NXP PCA9546AD112 to view detailed technical specifications.
No datasheet is available for this part.

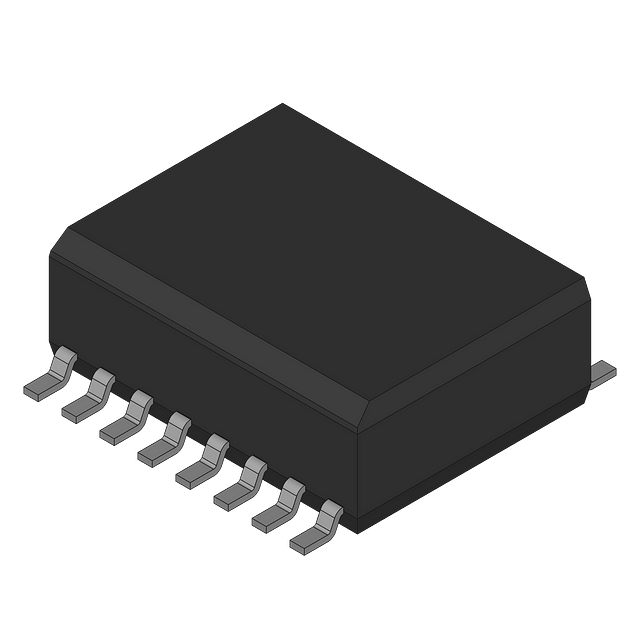

Product Images
