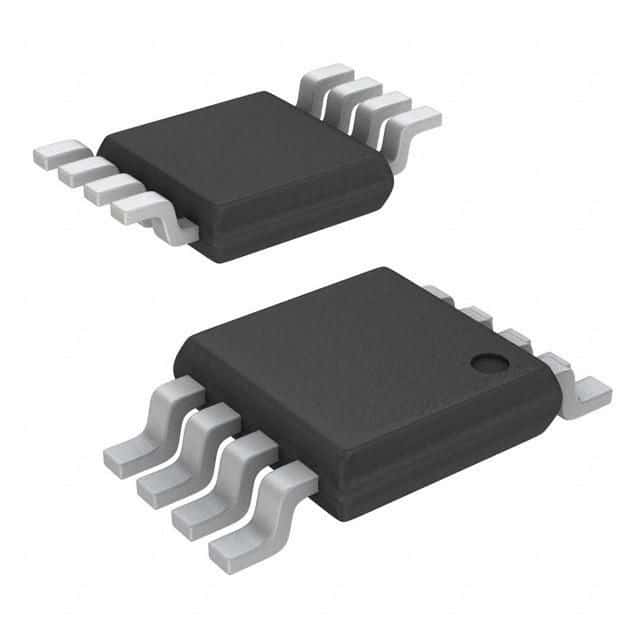

Four-channel LED driver IC featuring a 400kHz maximum frequency and 25mA low-level output current. Operates from a 2.3V to 5.5V supply voltage with a maximum supply current of 500µA. Packaged in a lead-free, RoHS-compliant 8-pin TSSOP for surface mounting, with dimensions of 3.1mm length, 3.1mm width, and 0.95mm height. Maximum power dissipation is 400mW, with an operating temperature range of -40°C to 85°C.
Sign in to ask questions about the NXP PCA9553DP/01,118 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PCA9553DP/01,118 technical specifications.
| Package/Case | TSSOP |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Low Level Output Current | 25mA |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Supply Current | 500uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Segments | 4 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 500uA |
| Supply Voltage-Nom | 5.5V |
| Width | 3.1mm |
| RoHS | Compliant |
