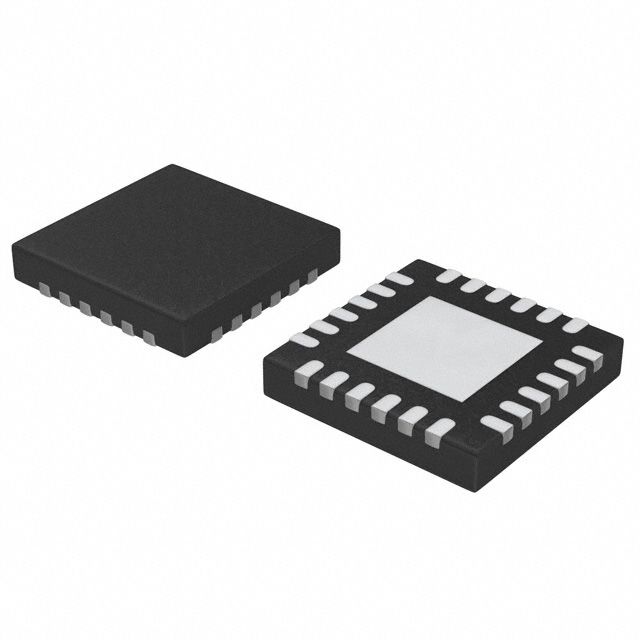

The PCA9555HF,118 is a 16-channel interface IC from NXP, operating at a maximum frequency of 400kHz and a supply voltage of 5.5V. It is designed for surface mount applications and features a lead-free construction. The device is RoHS compliant and is available in a tape and reel packaging with 6000 units per package. It can operate within a temperature range of -40°C to 85°C and has an output current of 24mA. The PCA9555HF,118 is suitable for use in a variety of applications, including those requiring I2C, SMBus, and serial interfaces.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PCA9555HF,118 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
NXP PCA9555HF,118 technical specifications.
| Frequency | 400kHz |
| Interface | I2C, SMBus, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of I/Os | 16 |
| Operating Supply Voltage | 5.5V |
| Output Current | 24mA |
| Output Type | PUSH-PULL |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for NXP PCA9555HF,118 to view detailed technical specifications.
