16-channel I/O expander with I2C and SMBus interface, supporting up to 400kHz operation. Features two 8-bit configurable ports, a 2.3V to 5.5V supply voltage range, and a low nominal supply current of 135uA. This surface-mount TSSOP package offers 16 general-purpose I/Os and operates within a temperature range of -40°C to 85°C.
Frequency400kHz
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9555PW,112 technical specifications.
General
| Package/Case | TSSOP |
| Frequency | 400kHz |
| Height | 1.1mm |
| Interface | I2C, SMBus |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Supply Current | 135uA |
| Number of Channels | 16 |
| Number of I/Os | 16 |
| Number of Ports | 2 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 211.997734mg |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCA9555PW,112 Datasheet
Download the complete datasheet for NXP PCA9555PW,112 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

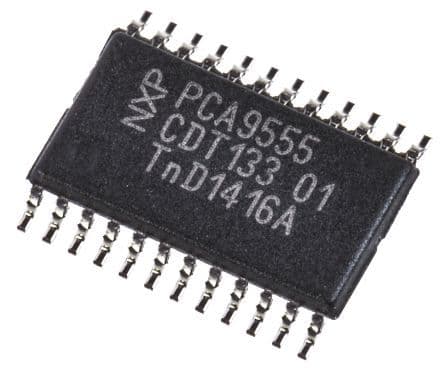

Product Images
