16-channel I/O expander with I2C and SMBus serial interfaces, operating at up to 400kHz. Features a 2.3V to 5.5V supply voltage range and 50mA output current. Packaged in a 24-pin TSSOP for surface mounting, this RoHS compliant component offers 16 general-purpose I/Os.
Frequency400kHz
PackageTSSOP
Current160mA
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9555PW,118 technical specifications.
General
| Package/Case | TSSOP |
| Frequency | 400kHz |
| Height | 1.1mm |
| Interface | I2C, SMBus, Serial |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 200mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Channels | 16 |
| Number of I/Os | 16 |
| Operating Supply Current | 135uA |
| Output Current | 50mA |
| Output Voltage | 4.1V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 160mA |
| Supply Voltage-Nom | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCA9555PW,118 Datasheet
Download the complete datasheet for NXP PCA9555PW,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

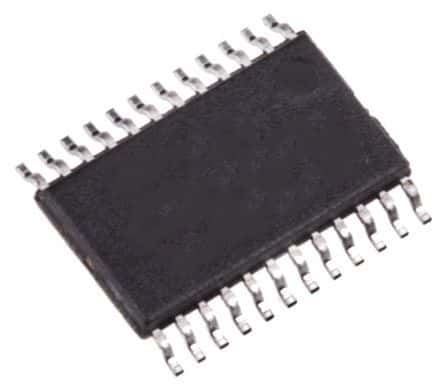

Product Images
