RGBA LED driver IC featuring 4 output channels, each capable of 25mA output current. Operates with a supply voltage range of 2.3V to 5.5V and a maximum power dissipation of 400mW. This component offers 4 bits of resolution and supports 8 segments, with a switching frequency up to 1MHz. Packaged in an 8-TSSOP, it is lead-free and RoHS compliant, suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PCA9633DP1,118 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

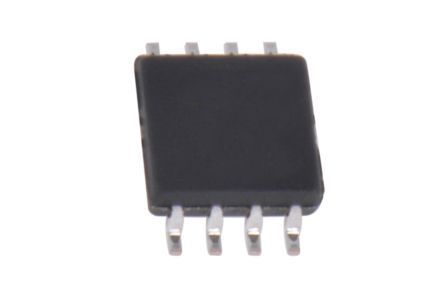

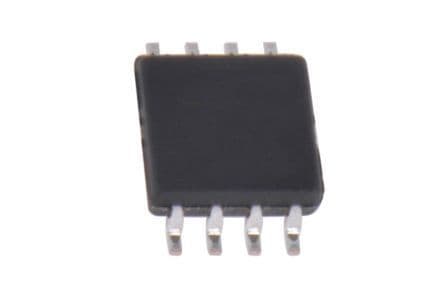

NXP PCA9633DP1,118 technical specifications.
| Package/Case | TSSOP |
| Frequency | 25MHz |
| Height | 0.95mm |
| High Level Output Current | 50uA |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Low Level Output Current | 100mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 400mW |
| Max Supply Current | 10mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Number of Bits | 4 |
| Number of Outputs | 4 |
| Number of Segments | 8 |
| Output Current | 25mA |
| Output Current per Channel | 25mA |
| Output Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 400mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 10mA |
| Switching Frequency-Max | 1MHz |
| Width | 3.1mm |
| RoHS | Compliant |
