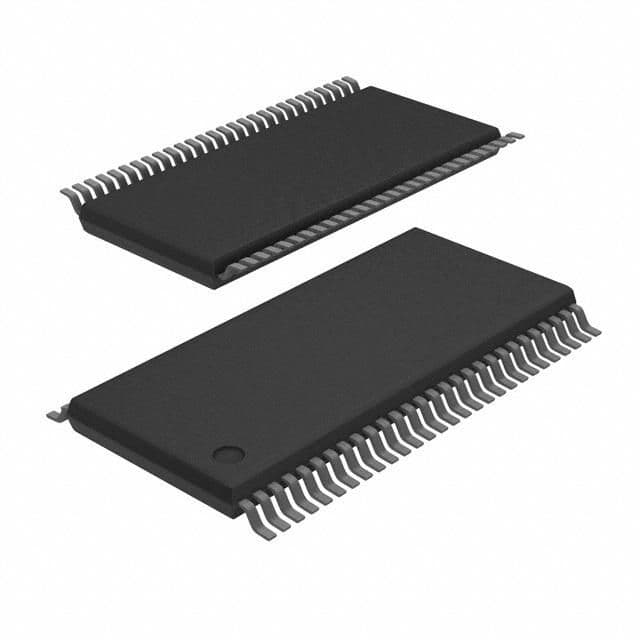

40-bit I2C I/O expander, serial interface, operating at up to 1MHz. Features a 5.5V maximum operating supply voltage and 50mA output current. Packaged in a 56-pin TSSOP for surface mounting. This lead-free, RoHS compliant component operates between -40°C and 85°C with a maximum power dissipation of 500mW.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the NXP PCA9698DGG,518 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Frequency | 1MHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 1MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Number of I/Os | 40 |
| Operating Supply Voltage | 5.5V |
| Output Current | 50mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Weight | 0.026103oz |
| RoHS | Compliant |
