16-channel LED driver IC with linear dimming, featuring a 31.25 kHz operating frequency and a maximum output current of 62mA per channel. This surface mount component operates from a 3V to 5.5V supply voltage and offers an output voltage of up to 40V. Housed in an HTSSOP package, it supports a maximum power dissipation of 3.2W and operates within a temperature range of -20°C to 85°C. The device is lead-free and RoHS compliant.
Frequency8MHz
PackageHTSSOP
Current16A
MountingSurface Mount
Quick Jump:
Technical Specifications
NXP PCA9952TW,118 technical specifications.
General
| Package/Case | HTSSOP |
| Frequency | 8MHz |
| Lead Free | Lead Free |
| Low Level Output Current | 30A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 3.2W |
| Max Supply Current | 15mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 16 |
| Number of Segments | 16 |
| Operating Frequency | 31.25 kHz |
| Output Current | 62mA |
| Output Current per Channel | 62mA |
| Output Voltage | 40V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.2kW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 16A |
| Switching Frequency-Max | 31.25kHz |
Compliance
| RoHS | Compliant |
Datasheet
NXP PCA9952TW,118 Datasheet
Download the complete datasheet for NXP PCA9952TW,118 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

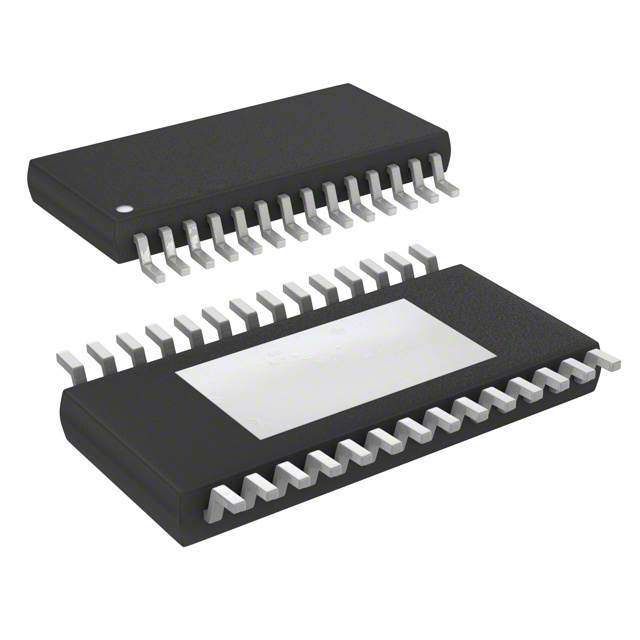

Product Images
